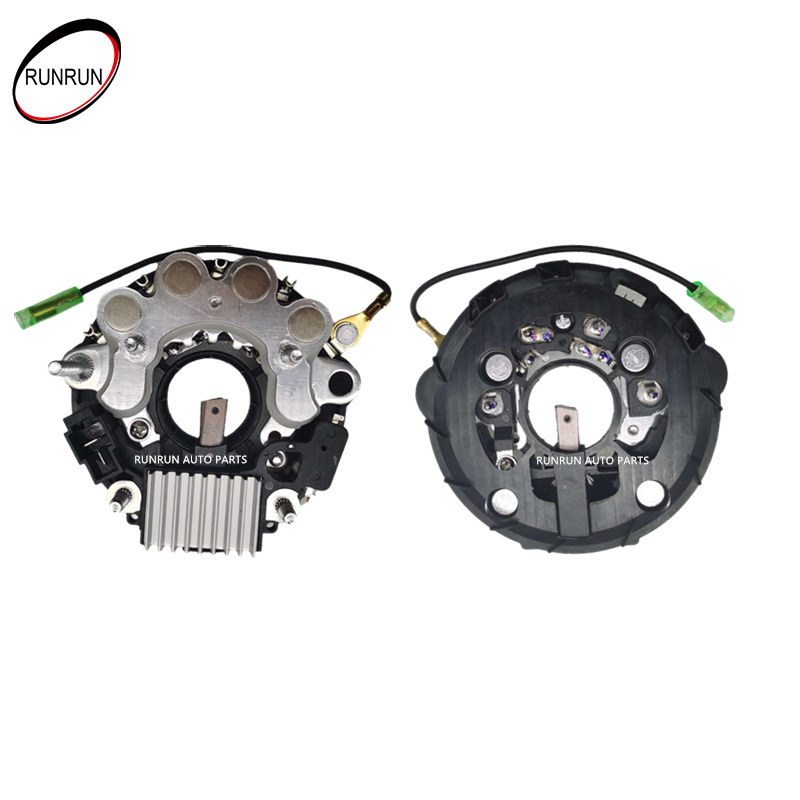

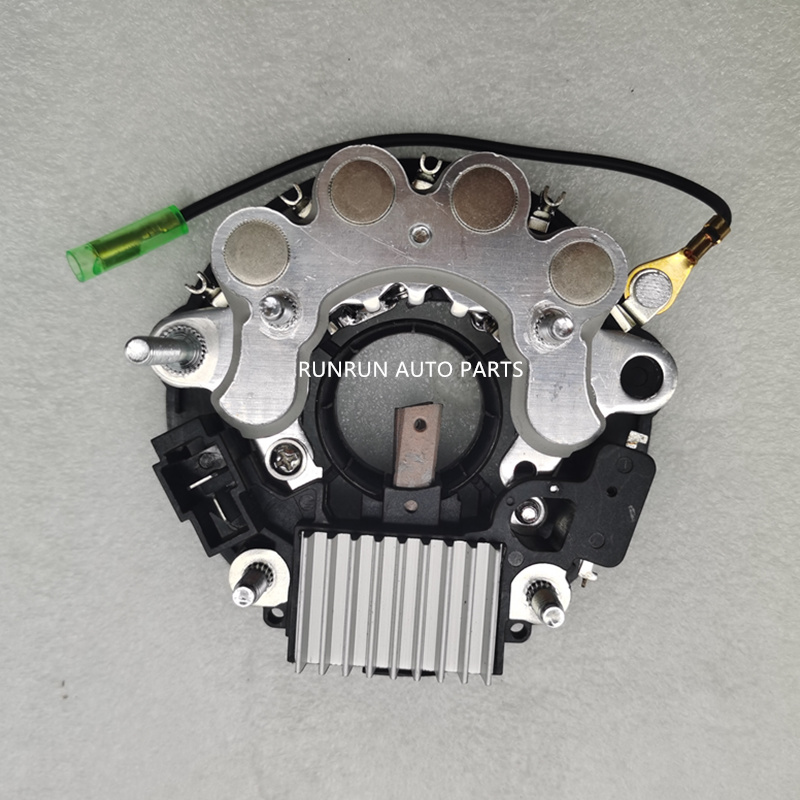

Puente rectificador del alternador IH784+IHR784 para SUBARU Jumbo 1.0 E10 1986- 0997ccm

PRICE

2- 10 pieces     $00.00
11- 30 pieces    $00.00
>= 31pieces     $00.00



SPECIFICATION

Voltage 12volt
Diameter of diode bridge external 100mm
Number of diodes 6 pcs
Diode current 30 amp
Diameter B+ M6
Bolt length B+ 10 mm
Number of terminals 4 pcs
Length between fixing holes 50 mm
Diodes yes pcs
Internal diameter of diode bridge 37 mm
Diode type standart



Palabras clave:Motor de arranque

OEM No.


RR No. REC0072
Hitachi L140G33001A
JOHN DEERE M806477
KRAUF AEH0784BP, AEH0784DD, AEH0784UT
Mobiletron RH92, RH95
Transpo IHR784
UTM EH0784A
ZAUFER 312N10272Z

FITS FOR ALTERNATOR OEM


11983677201, 12390077210, ALH0043LK, ALH0207LP, ALH0207SK, ALH0207WA, ALH0390LP, ALH0390SK, ALH0390UW, ALH3401LP, ALH3401SK, ALH6796SK, ALH7207NW, ALH9401LK, LR140721, LR140721B, LR160735, LR160735B

APPLICATION


SUBARU Jumbo 1.0 E10 1986- 0997ccm SUBARU Justy I 1.0 KAD 1984- 1989 0998ccm EF10 SUBARU Justy I 1.2 KAD 1987-1989 1189ccm EF12 SUBARU Libero 1.2i E10 1986-1993 1190ccm EF12E
